Boxcars

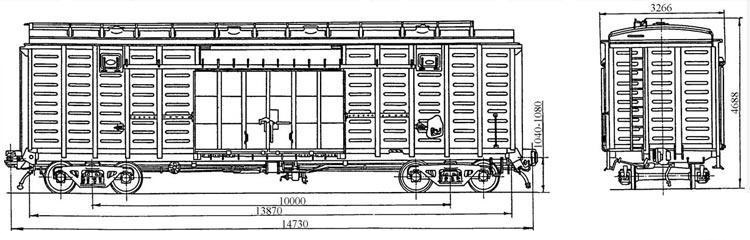

Covered wagon four-axis model 11-270
| Inner dimensions |
Volume (m3) |
Capacity(t) |
Door height(m) |
Gate width(m) |
||
| Length (m) |
Width(m) |
Hight (m) |
||||
| 13.84 |
2.76 |
2.79 |
122 |
69 |
2.34 |
3.80 |

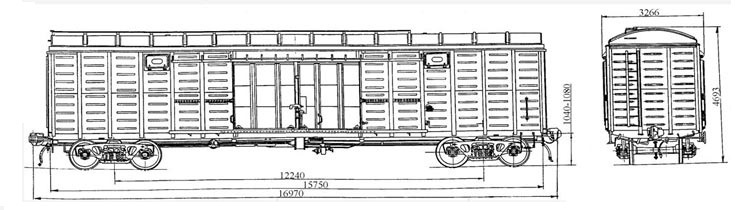

Covered wagon four-axis model 11-280
| Inner dimensions | Volume (m3) |
Capacity (t) |
Door height (m) |
Gate width (m) |
||
| Length (m) |
Width (m) |
Height (m) |
||||
| 15.72 |
2.76 |
2.79 |
138 |
68 |
2.34 |
3.80 |

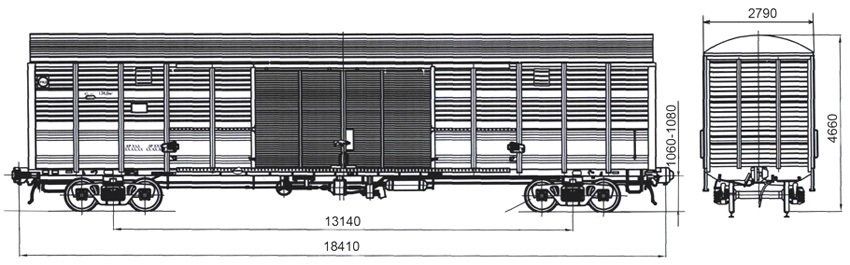

Covered wagon four-axis model 11-7038
| Inner dimensions | Volume (m3) |
Capacity (t) |
Door height (m) |
Gate width(m) |
||
| Length (m) |
Width (m) |
Height (m) |
||||
| 17.46 |
2.79 |
3.10 |
150 |
68 |
2.86 |
3.90 |

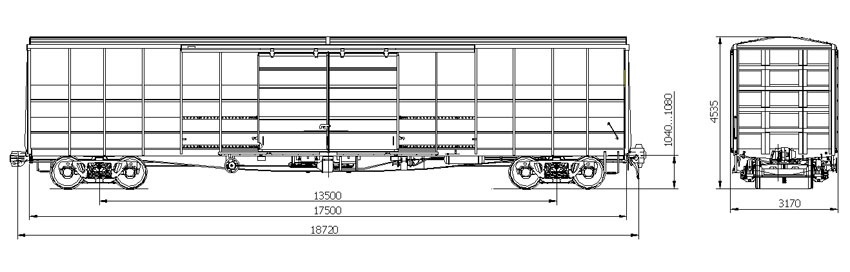

Covered wagon four-axis model 11-1807-01
| Inner dimensions |
Volume (m3) |
Capacity (t) |
Door height (m) |
Gate width (m) |
||
| Length (m) |
Width (m) |
Height (m) |
||||
| 17.68 |
2.79 |
2.82 |
158 |
66.7 |
2.71 |
3.97 |

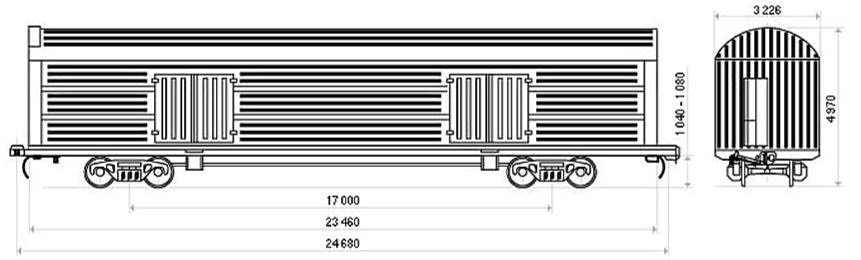

CMGV wagon model 11-9733
| Inner dimensions |
Volume (m3) |
Capacity (t) |
Door height (m) |
Gate width (m) |
||
| Length (m) |
Width (m) |
Height (m) |
||||
| 23.34 |
3.10 |
3.67 |
240 |
50 |
— |
— |
The wagons of the increased volume are one of the greatest wagons made to run on the 1520 mm. This type of wagon is ideal for transporting large volumes of light cargo, special heavy equipment that can be easily loaded through the back door, as well as wagons, which have two doors on each side. CMGV model wagons are metallic, so the load is more protected from the weather.
CMGV wagon model 11-1709
| Inner dimensions | Volume (m3) |
Capacity (t) |
Door height (m) |
Gate width (m) |
||
| Length (m) |
Width (m) |
Height (m) |
||||
| 24.45 |
2.65 |
— |
250 |
51 |
2.29 |
2.70 |

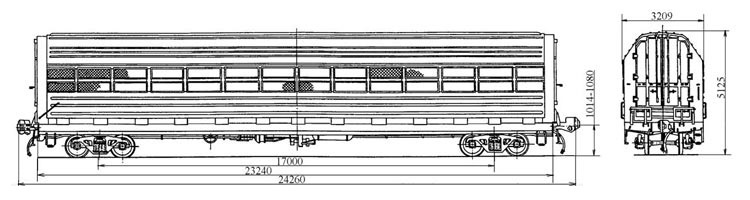

Autotransporter “Grid” model 11-835 Wagon
| Inner dimensions | Volume (m3) |
Capacity (t) |
Door height (m) |
Gate width (m) |
||
| Length (m) |
Width (m) |
Height (m) |
||||
| 22.90 |
2.40 |
1.82+1.86 |
250 |
15 |
— |
— |

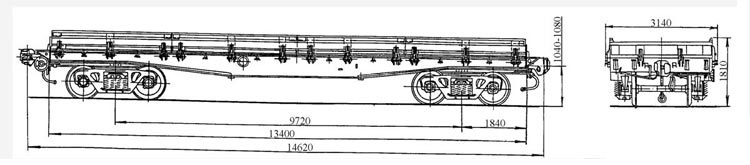

PLATFORMS
| Platform dimensions |
Area (m2) |
Capacity (t) |
||
| Length (m) |
Width (m) |
Height (m) |
||
| 13.40 |
2.8 |
— |
36.8 |
70 |
Platforms – wagons for offsized cargos. These wagons on the frame have a floor and side panels, which open on the perimeter.

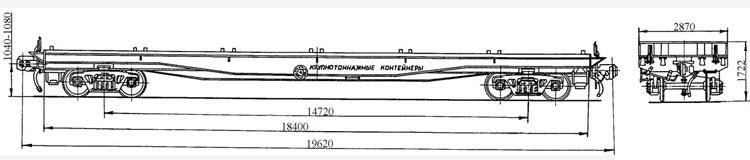

Fitting container platform model 23-469-07
| Inner dimensions |
Area (m2) |
Capacity (t) |
||
| Length (m) |
Width (m) |
Height (m) |
||
| 24 |
2.70 |
— |
64.8 |
69 |
Extended platform model 13-9004
| Platform dimensions | Area (m2) |
Capacity (t) |
||
| Length (m) |
Width (m) |
Height (m) |
||
| 18.30 |
2.87 |
— |
52.5 |
65 |
Dimensions of rail containers
| Type |
Length |
Width |
Height | Volume cbm | Capacity t |
| 3 ton |
1930 |
1225 |
2128 |
5,6 |
2400 |
| 5 ton |
2515 |
1950 |
2128 |
10,4 |
3800 |
| 20 ton |
5867 |
2330 |
2197 |
30,6 |
18000 |
| 24 ton |
5867 |
2330 |
2350 |
32,7 |
21200 |
